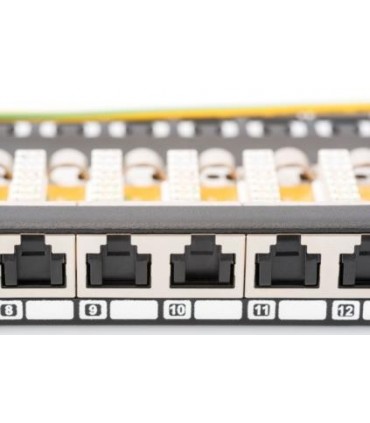

Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus
Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus

Panel 19" 24 Ports Cat6A STP 0,5U HD Digitus


Panel distribución alta densidad de datos Cat6A STP 24 puertos para rack 19" 1/2U con tomas protegidas anti-polvo.

Datasheet ENG

Lee mas
Referencia:
DC205
Descripción

DIGITUS CAT 6A Class EA patch panel, shielded, 0.5U, 24-port RJ45, incl. dust cover, 8P8C, color black RAL 9005

The DIGITUS® 24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed.

  • Transmission properties: Category 6A, Class EA
  • Area of application: Up to 500 MHz, 10GBase-T
  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with cable tie
  • Central ground connection
  • 360° shield coverage
  • Integrated dust cover
  • Mechanical properties:
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
  • Ground wire: Not included
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Category: CAT 6A
  • Ports: 24
  • Color: black, RAL 9005
 Datasheet ENG



Lee mas
Detalles del producto
DC205
