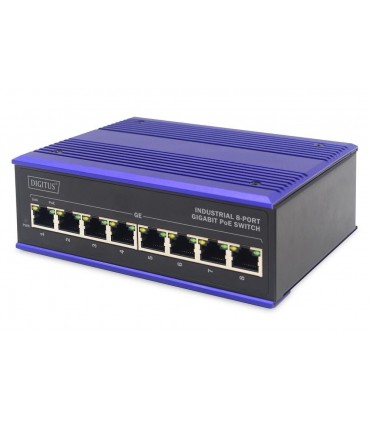

Switch Ind. 8 ports Gigabit POE Digitus DN-651121

Industrial 8-Port Gigabit PoE Switch

Industrial 8-Port Gigabit PoE Switch DIN rail, extended temp. range

Robust and durable industrial solutions with integrated Power over Ethernet (PoE) function

Industrial 8-Port Gigabit PoE Switch

8 x 10/100/1000Base-TX Ethernet PoE ports

DIN rail mountable

The DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. The PoE ports with IEEE802.3af/at support can supply PoE capable devices with up to 30 W per port. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity, the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Technical details

8 x 10/100/1000Base-TX Ethernet PoE Ports

Supports IEEE802.3af/at

Automatic cable detection - Auto MDI / MDI-X function

Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3z 1000BaseTX, IEEE802.3af, IEEE802.3at

IEEE802.3x Flow Control und Back Pressure

Store and forward technology for optimized data transfer

Automatic speed and half/full duplex recognition/adjustment

Backplane with 16Gbps

Supports up to 4K MAC addresses

Compact, robust metal housing

Excellent short-circuit protection

Lightning and overvoltage protection

DIN rail (top-hat rail) and wall mounting possible

Redundant power supply: 48~57 V DC, redundant power supply with reverse polarity protection function

Extended operating temperature range, -40 °C ~ +85 °C

Removable terminal connection

Package content

Industrial 8-Port Gigabit PoE Switch

quick start guide
