Extender Set HDMI 4K HDBaseT

200,83 € (impuestos excl.)
Referencia:
ID208
Descripción

Manual de instrucciones

4K HDMI Extender Set, HDBaseT, 70 m over network cable (Cat 5E, 6, 7) UHD 4K2K/30 Hz

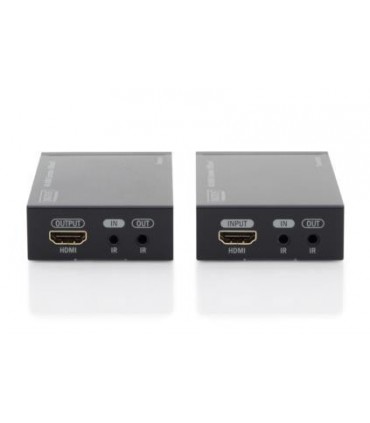

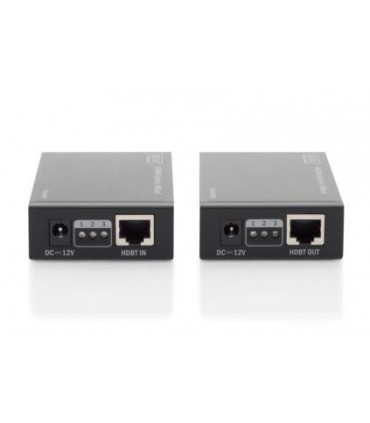

The Digitus 4K extender set, HDBaseT offers an extender solution up to 70m for the highest demands - for both high definition graphic display and also for absolutely fluent video playback. It transmits digital and audio signals up to a maximum distance of up to 70m. 4K content can be transmitted over up to 40m using a CAT 6 network cable. It consists of a transmitter as well as a receiver unit. Thanks to PoE support, only the transmitter has to be supplied with power by means of the supplied power supply unit. Two bi-directional infrared units (sender, receiver) are also supplied, by means of which the remote control of the connected input source can be used.

Package Content

  • 1x HDMI Extender transmitter unit
  • 1x HDMI Extender receiver unit
  • 1x Power supply unit: DC 12V/2A

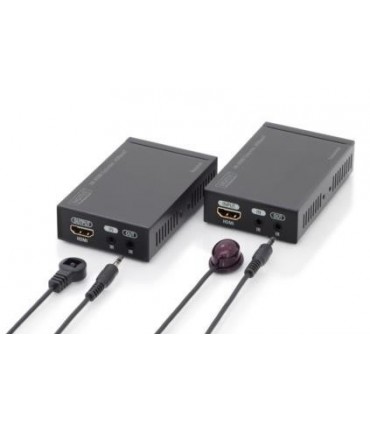

  • 1x IR transmitter unit
  • 1x IR receiver unit
  • 2x Mounting Sets & Screws
  • 1x Instruction manual

CARACTERÍSTICAS TÉCNICAS

  • Extends the maximum length for HDMI cables to up to 70m whereby only a simple network cable is used between a sender and a receiver unit
  • Extends 4K video contents to up to 40m with a CAT 6 cable
  • Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
  • Supports PoE - only one power supply is needed either on the transmitter or receiver side (receiver recommended)
  • Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
  • Uses HDBaseT technology
  • Supports CAT 5e, CAT 6 and CAT 7 network cables
  • Supports HDCP 2.2
  • Integrated bidirectional IR-Interface - Easy control of the input source with a remote control
  • Resolutions: 4K2K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
  • LED status indicator
  • Supports: 3D, HDTV
  • Supports CEC
  • Supports Deep Color (24bit)
  • Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
  • Supports uncompressed audio signals such as LPCM
  • Metal casing
  • Compact size, simple use and installation
  • Power supply unit: DC 12V/2A
  • Dimensions (1x unit): L 9.85 x W 6.65 x H 2.3 cm
  • Color: black
