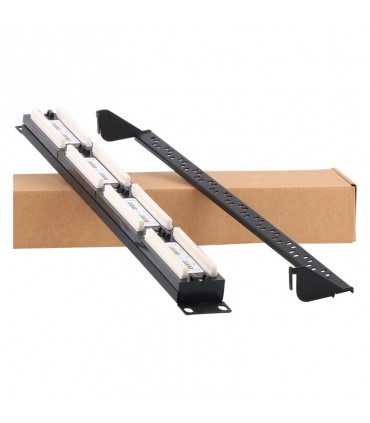

Panel 19" 24 P. UTP CAT.6A c/soporte

Panel de datos de 19" de 1UH, con 24 tomas integradas RJ-45 de Cat.6 A sin apantallar. Incluye soporte posterior para la mejor sujeción de los cables.
El sistema de inserción 110 nos asegura una sujección mecánica perfecta de cables rígidos desde AWG 22 hasta AWG 26, y multifilares AWG 24.
Normas: ISO / IEC 11801 3ra Ed., EN 50173-1, EIA / TIA 568-C.

Transmission properties: Category 6 A

• Area of application: Up to 250 MHz, 1GBase-T, PoE
• Norms: ISO/IEC 11801 3nd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for 483 mm (19") cabinet mounting
• RJ45 female, 8P8C
• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Cable fixing with cable tie
• Mechanical properties:
• Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 female material: ABS UL 94V-0
• RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
• RJ45 shielding: Tinned bronze
• LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Ground wire: Not included
• Conductor plate: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Retention strength: 7.7 kg between jack and plug
• Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size: 22 – 26 AWG solid and stranded conductor
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 MilliOhm
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

• Category: CAT 6 A
• Ports: 24
• Units: 1
