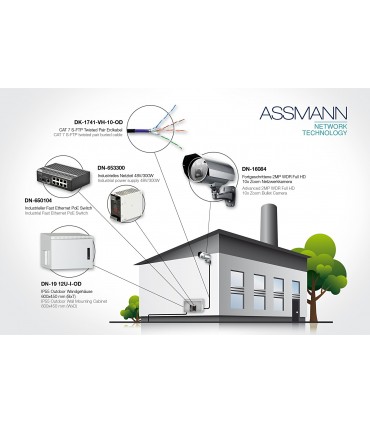

Cable Exterior CAT 7 S-FTP Negro, AWG23/1, CU Bobina 100m.

Bobina de 100 m. Cable instalación exterior CAT 7 S-FTP Rigido  AWG23/1, CU, Buried  DIGITUS Profesional

Datsheet ENG

Lee mas
86,67 € (impuestos excl.)
Referencia:
AB303
Descripción

Cable instalación exterior CAT 7 S-FTP Rigido  AWG23/1, CU, Buried bobina 100m. DIGITUS Profesional

Best performance and link quality for your network.

Physical properties:
Basic conductor: Solid AWG 23/1, bare annealed copper 0.57 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Wire braid, 35% nominal coverage, copper drain wire
Outer jacket: PUR.F45052-F5100
Outer jacket diameter: 0.6 mm nominal
Color: Black (RAL 9005)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 10x AD mm min.
Static bending radius: 6x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -30 °C up to +70 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter: 6.5 mm nominal
Weight: 50 kg/km
Electrical properties:
Mean impedance: 100±5Ohm at 1MHz - 600MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 15 nS/100 m max.
Separating class: ?d? acc. to EN 50174-2
NVP: 79%

Category: CAT 7
Shielding: S-FTP, pairs in metal foil and braid shielding
Structure: 4 x 2 AWG 23/1, solid twisted pair
Color: black
Length: 100 m
Jacket: PUR

Datsheet ENG

Lee mas
